Webinar Recap: Revolutionizing Asset Tracking through Satellite-Based IoT Technologies

Signal Integrity

Semtech Corporate Marketing

Semtech Corporate Marketing

Earlier this month, Semtech and Keysight recently held a webinar focused on the concept and technology of Linear Pluggable Optics (LPO). We reviewed the important technical differentiators found in this emerging interconnect field and how the electro/optic interoperability and testing needs are being addressed to satisfy cutting-edge system interconnect performance needs.

LPO technology has several advantages in the field of lower power consumption and reduced signaling latency, which makes it an ideal and unique interconnect solution for AI, machine learning and hyperscaler datacenter applications. The current generation of linear specifications originates from the Optical Interconnect Forums (OIF) CEI-112G-LINEAR-PAM4 (800Gbps) specifications. The OIF has recently advanced this to a draft 224G version of the same linear interface, which is targeted for the 1.6Tbps interconnect field.

Typically, up until now all Intensity Modulation/Direct Detection (IM-DD) client optics at 100 Gb/s speeds and higher have been implemented with power hungry DSP re-timers. Implementing new systems using analog-only LPO modules within existing form factors offers substantial power advantages, along with reduced latency, lower complexity, and cost-effective modules—delivering significant cost and power savings for hyperscalers.

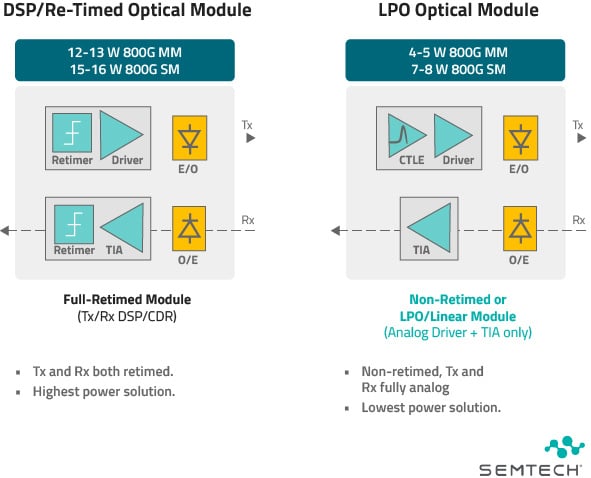

Technical diagram comparing DSP/Re-Timed Optical Module (left) vs LPO Optical Module (right) from Semtech. The left shows a full-retimed module with 12-16W power requirements for 800G connections, featuring retimer components in both Tx and Rx paths. The right shows a non-retimed/LPO/Linear module using only 4-8W power for 800G connections, with simplified analog components. The diagram illustrates signal flow paths and key differences, noting that retimed solutions offer highest power while LPO solutions provide lowest power consumption for AI and hyperscaler data center applications.

Semtech has led the charge on new standards for LPO modules, including the Optical Internetworking Forum’s (OIF) CEI-112G-Linear and CEI-212G-Linear Implementation Agreements and an industry based LPO-MSA specification for 100G single-mode optical modules.

To watch the full webinar on demand, please click here
